         Ariesys >>  Products >> Portable Chassis >> ARP650
ARP650                              移動式電腦機殼: 15" 螢幕, 11*可擴充介面,  工業用單板電腦 + 工業背板

Features

  • Rugged Aluminum Construction with shock absorbing rubber corners

  • Built-in 15” LCD display with tempered glass, 1024x 768

  • Designed for SBC with Backplane

  • Offer 11 full length slots expansion capability

  • Industrial multi-languages keyboard with touchpad

  • 1U, 400W power supply, 100~240VAC

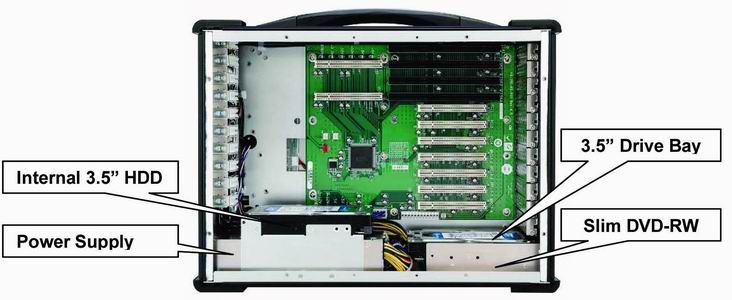

  • Offer 1x slim DVD-RW, 2x 3.5” drive bays

  • Anti-reflection tempered glass protect LCD

  • Carrying case to manage portable PC with ease

產品規格
產品型號 ARP650
可安裝的主機板 工業用單板電腦+工業背板 ( SBC with Backplane )
擴充插槽

11x 可擴充介面

擴充磁架 1x slim DVD-RW, 2x 3.5” drive bays
螢幕

15" TFT LCD Monitor, 1024x 768, 250 nits brightness

Anti-reflection tempered strengthen glass

VGA AD conversion board, VGA interface (Option DVI)
鍵盤/滑鼠

Industrial multi-languages Keyboard/ touchpad

Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US

電源供應器 1U, 400W, 115~230VAC, Auto switch
結構 Rugged Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
尺寸 412Wx 330Hx 228D mm (16.2”x 12.99”x 8.97”)
重量 11 kgs
移動式手提拉包 Padded carrying case with wheels

Power Supply:

Input:
VOLTAGE: 90~135VAC or 185~260VAC (115/230 AUTO SELECTABLE)
FREQUENCY: 50/60Hz.
400Hz only for 220V AC.
INPUT CURRENT: 8A for 115V AC, 4A for 230VAC.
INRUSH CURRENT: 60A for 115VAC, 80A for 230VAC

Output:

Voltage:
+5V DC
+12V DC
-5V DC
-12V DC
+3.3V DC
+5VSB
Maximum Load:
40A
20A
0.3A
0.8A
20A
2A
Minimum Load:
3A
2A
0.1A
0.1A
0.3A
0.1A
Ripple/Noise Max.(P-P):
50mv
120mv
150mv
150mv
50mv
50mv
Line Regulation:
±1﹪
±1﹪
±1﹪
±1﹪
±1﹪
±1﹪
Load Regulation:
±5﹪
±5﹪
±10﹪
±10﹪
±5﹪
±5﹪



Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS



Ordering Information
Product No. Description
ARP650

15" LCD, 11 slots for SBC with backplane, keyboard with touchpad, 400W PSU, Carrying case

Options
LCD Display



15" TFT LCD display, 1024x 768 resolution
  15.4" TFT LCD display, 1920x 1200 resolution
VGA Interface

D-sub 15pin VGA interface cable
  DVI Interface cable for DVI Graphic card
Touch Screen

None
  Touch Screen
