         Ariesys >>  Products >> Portable Chassis >> Workstation >> ARP690

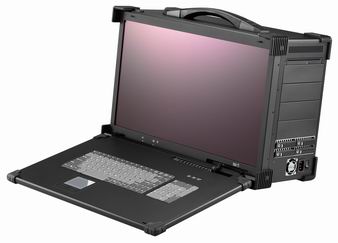

ARP690                  Aluminum Multi-slot Portable workstation with 21.5" LCD, 1920x 1080 resolution

Features
  • Aluminum Construction with shock absorbing rubber corners

  • 21.5" LCD display support Full HD, 1920x 1080 resolution,  Anti-reflection tempered glass

  • Support Standard ATX Motherboard

  • Offer 7-slot expansion capability

  • 1U, 600W power supply, 100~240VAC

  • Offer 10x 3.5" drive bay, Option: 5x 5.25"

  • Industrial multi-language Keyboard with touchpad

  • Keyboard is integrated with the portable to allow closing against the portable for both convenience and protection in transportation

  • Large handle provide convenience transportation of the portable with comfort and ease

  • Trolley case to manage portable PC with ease

Specifications
Model No ARP690
Motherboard

Support Standard ATX Motherboard (Support up to 12"x 12" MB)

Slots

Offer 7 expansion slots

Display

21.5" LCD display, 1920x 1080 resolution,

Anti-reflection tempered strengthen glass

Drive bay 10x 3.5" (Option: 5x 5.25")
VGA AD conversion board, DisplayPort interface (Option DVI or VGA)
KB/MS

Industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, IT, JP, KR, PT, RU, SP, UK, US

Power Supply 1U, 600W, 100~240VAC, Auto switch
Construction Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 524Wx 372Hx 226D mm
Weight 14 kgs
Trolley Case Padded Trolley case with wheels
Ordering Information
Product No. Description
ARP690-21USAP

21.5" LCD, 7 slots, 10x 3.5" drive bay, 1U 600W, DP, Trolley case

ARP690-21USAD

21.5" LCD, 7 slots, 10x 3.5" drive bay, 1U 600W, DVI, Trolley case

ARP690-21USA

21.5" LCD, 7 slots, 10x 3.5" drive bay, 1U 600W, VGA, Trolley case

ARP690-21USBP 21.5" LCD, 7 slots, 5x 5.25" drive bay, 1U 600W, DP, Trolley case
ARP690-21USBD 21.5" LCD, 7 slots, 5x 5.25" drive bay, 1U 600W, DVI, Trolley case
ARP690-21USB 21.5" LCD, 7 slots, 5x 5.25" drive bay, 1U 600W, VGA, Trolley case
