           Ariesys >>  Products >> Portable Chassis >> ARX308

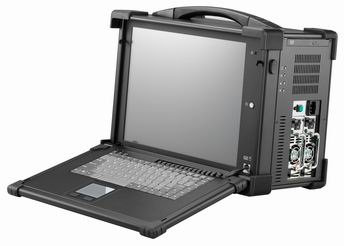

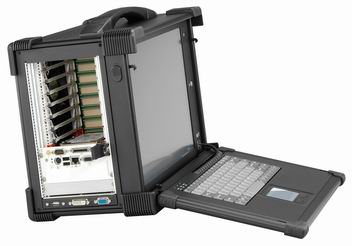

ARX308                           3U, 8-slot PXI cPCI Portable Instrument with 15" Touch screen display

Features

  • Designed for portable instrument applications

  • Accepts both 3U PXI and CompactPCI Modules

  • 3U, 8-slot Portable Instrument

  • Built-in 15” LCD display with touch screen, 1024x 768

  • One system slot and 7 PXI peripheral slots

  • Aluminum Alloy Housing design

  • Integrated keyboard and touchpad

  • PS2 400W power supply (option: Dual hot swapping 300W mini-redundant power supply)

  • Built-in slim DVD-ROM device

  • Carrying case to manage portable PC with ease

Specifications
Model No ARX308
Backplane

3U-size, 8-slot PXI backplane

Compliant with PXI specifications Rev2.2

Accepts both PXI and CompactPCI 3U module

Accessible Slots

1 system slot & 7 Peripheral slots

Display

15" TFT LCD Monitor with touch screen, 1024x 768

Drive bay Slim DVD-ROM
KB/MS

Integrated keyboard and touchpad, RJ45 connector

Construction Aluminum Construction with shock absorbing rubber corners
Power Supply

PS2 400W power supply

Option: Dual 300W mini-redundant, hot-swappable power supply, current sharing all voltage

Dimension 412Wx 308Hx 228D mm
Weight 12 kgs
Carrying Case Padded carrying case with wheels
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 20%~90% 10%~95%
Approval CE, FCC, RoHS
Ordering Information
Product No. Description
ARX308-15USP

15" LCD with touch screen, 3U, 8-slot Portable Computer, PS2 400W PSU, slim DVD-ROM, Carrying case

ARX308-15USR

15" LCD with touch screen, 3U, 8-slot Portable Computer, 300W+300W redundant PSU, slim DVD-ROM, Carrying case
