            Ariesys >>  Products >> Portable Computer >> ARP992

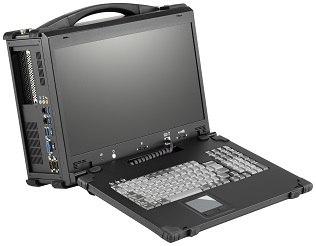

ARP992                                   17.3" LCD, Core i7/ i5 Processors, Multi-slot Portable System



Features
  • All-in-one design rugged portable computer

  • Rugged Aluminum Construction with shock absorbing rubber corners

  • Compact Size Lightweight Design

  • Built-in 17.3", 1920x 1080 resolution LCD display, Option: 17.3", 3840x 2160 resolution

  • Intel 7th Core i5-7440EQ or i7-7820EQ Processors.

  • 250W power supply

  • 2xPCI, 1PCI-E (x16) slots, 1x M.2 (M2280), Option: 3PCI-E (x16, x1, x1) slots, 1x M.2 (M2280), Option: 3PCI slots, 1x M.2 (M2280)

  • Built-in SSD 240GB, Support 2x 2.5" removable SATA

  • Dual Gigabit Ethernet, 2x COM Port

  • Industrial multi-language Keyboard with touchpad

  • The keyboard is integrated with the portable computer to protect the screen and easy to carry

  • Large handle provide convenience transportation of the portable computer with comfort and ease

  • Carrying case to manage portable PC with ease

Specifications
Model No ARP992-17W
CPU

Intel Core i5-7440EQ, 2.90GHz Processors

Option: Intel Core i7-7820EQ, 3.0 GHz

Chipset

Intel 7th Gen. Core™ i5 /i7 processors with Intel CM238

Slot

2 PCI, 1PCI-E (x16) full-length expansion slots, 1x M.2 (M2280)

Option: 3 PCI-E (x16, x1, x1) full-length expansion slots, 1x M.2 (M2280)

Option: 3 PCI full-length expansion slots, 1x M.2 (M2280)

Display

17.3" 1920x 1080 LCD Monitor

Option: 17.3", 3840x 2160 resolution

Memory 2x 8GB DDR4 RAM
HDD 1x SSD 240GB, Support 2x 2.5" removable SATA
CDROM 1x Slim DVD-RW
Interfaces

2x DB9 for COM1, COM2, DVI-D, HDMI, DP, 6x USB 3.0 connectors

2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio

LAN Intel I219LM GbE LAN PHY
Intel I211AT PCI-E Gigabit LAN (as 2nd GbE)
Audio Intel CM238 built-in HD audio
with Realtek ALC892 codec
KB/MS

industrial multi-languages Keyboard/ touchpad

Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US

Power Supply

250W, 100~240VAC Power supply

Speaker Built-in amplified 2x 3W speakers
Construction Rugged Aluminum Construction with shock absorbing rubber corners
Dimension 418x 352x 166 mm (Wx Hx D)
Weight 7.6 kgs
Carrying Case Padded carrying case with wheels
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS
Ordering Information
Product No. Description
ARP992-17WUSC 17.3" FHD LCD, i5-7440EQ, 2x 8G RAM, 2PCI, PCI-E (x16), 240G SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17WUSD 17.3" FHD LCD, i5-7440EQ, 2x 8G RAM, 3 PCI-E (x16, x1, x1), 240G SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17WUSE 17.3" FHD LCD, i5-7440EQ, 2x 8G RAM, 3 PCI, 240G SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17UUSC 17.3" UHD LCD, i5-7440EQ, 2x 8G RAM, 2PCI, PCI-E (x16), 240G SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17UUSD 17.3" UHD LCD, i5-7440EQ, 2x 8G RAM, 3 PCI-E (x16, x1, x1), 240G SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17UUSE 17.3" UHD LCD, i5-7440EQ, 2x 8G RAM, 3 PCI, 240G SSD, DVD-RW, 250W PSU, Carrying case

Option: 17.3", 3840x 2160 resolution

Keyboard layout: CH, FR, GR, KR, RU, SP, UK, US

Packing List
1 * ARP Slim Rugged Portable Computer 1 * MB Manual & Driver
1 * Carrying case with wheels 1 * Anti-Static Bag
1 * Power Cord 1 * Foam with Box


Applications: Military, Industrial automation, Digital TV test & analysis, Mobile Computing, Outdoor Computers, video conferencing,

                      E-learning, Speech Technologies, Telemedicine, Portable Workstation, Multimedia, Mission Critical Computing.
