            Ariesys >>  Products >> Portable Computer >> ARP992-B

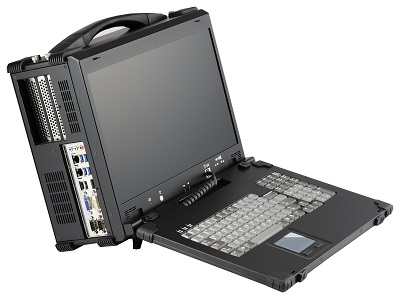

ARP992-B                                   17.3" LCD, Core i7/ i5 Processors, Multi-slot Portable Battery System

Features

  • All-in-one design rugged portable computer

  • Rugged Aluminum Construction with shock absorbing rubber corners

  • Compact Size Lightweight Design

  • Built-in 17.3", 1600x 900 resolution LCD display

  • Intel 7th Core i5-7440EQ or i7-7820EQ Processors.

  • 2x 95W Li-ion battery packs, 100W adapter, up to 4 hours battery life, or 250W power supply

  • Industrial Keyboard multi-language with touchpad

  • 3x PCI-E (x8) full-length expansion slots, 1x M.2 (M2280)      Option: 3x PCI-X full-length slots, 1x M.2 (M2280)              Option: 2PCI, 1PCI-E (x16) full-length slots, 1x M.2 (M2280)

  • Built-in SSD 240GB, Support 2x 2.5" removable SATA

  • Dual Gigabit Ethernet, 2x COM Port

  • Carrying case to manage portable PC with ease



Specifications
Model No ARP992-B17 ARP992-17
CPU

Intel Core i5-7440EQ, 2.90GHz Processors

Option: Intel Core i7-7820EQ, 3.0 GHz

Chipset

Intel 7th Gen. Core™ i5 /i7 processors with Intel CM238

Slot

3 PCI-E (x8) full-length expansion slots, 1x M.2 (M2280)

Option: 3 PCI-X full-length expansion slots, 1x M.2 (M2280)

Option: 2 PCI, PCI-E (x16) full-length expansion slots, 1x M.2 (M2280)

Display

17.3" 1600x 900 LCD Monitor (Option: 17.3", 1920x 1080 resoltion)

Memory 2x 8GB DDR4 RAM
HDD 1x SSD 240GB, Support 2x 2.5" removable SATA
CDROM 1x Slim DVD-RW
Interfaces

2x DB9 for COM1, COM2, DVI-D, HDMI, DP, 6x USB 3.0 connectors

2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio

LAN Intel I219LM GbE LAN PHY
Intel I211AT PCI-E Gigabit LAN (as 2nd GbE)
Audio Intel CM238 built-in HD audio
with Realtek ALC892 codec
KB/MS

industrial multi-languages Keyboard/ touchpad

Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US

Power Supply

2x 95W Li-ION battery Packs (Hot-Swappable)

100W AC Adapter, up to 4 hours battery life

250W, 100~240VAC Power supply

Speaker Built-in amplified 2x 3W speakers
Construction Rugged Aluminum Construction with shock absorbing rubber corners
Dimension 418x 352x 166 mm (Wx Hx D)
Weight 7.6 kgs
Carrying Case Padded carrying case with wheels
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS

Battery Packs:

  • 2x 95W Li-ION battery Packs (Hot swappable)

  • 100W AC adapter for AC Operation and recharging

  • LCD panel for battery capacity: The LCD display shows battery array fuel gauge, power, current, charge/ discharge state, time to fully charged, time to empty.

  • The battery charge time is about 2 hours if a single battery is attached and 3.5 hours if two battery packs are attached

Ordering Information
Product No. Description
ARP992-B17USA 17.3" 1600x 900 LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-E, 240G SSD, DVD-RW, Battery packs, Carry case
ARP992-B17USB 17.3" 1600x 900 LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-X, 240G SSD, DVD-RW, Battery packs, Carry case
ARP992-B17USC 17.3" 1600x 900 LCD, i5-7440EQ CPU, 2x 8G RAM, 2PCI, PCI-E (x16), 240G SSD, DVD-RW, Battery packs, Carry case
ARP992-17USA 17.3" 1600x 900 LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-E, 240G SSD, DVD-RW, 250W power supply, Carry case
ARP992-17USB 17.3" 1600x 900 LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-X, 240G SSD, DVD-RW, 250W power supply, Carry case
ARP992-17USC 17.3" 1600x 900 LCD, i5-7440EQ CPU, 2x 8G RAM, 2PCI, PCI-E (x16), 240G SSD, DVD-RW, 250W power supply, Carry case

Keyboard layout: CH, FR, GR, KR, RU, SP, UK, US

Options
LCD Display



17.3" TFT LCD display, 1600x 900 resolution
  17.3" TFT LCD display, 1920x 1080 resolution
Power Supply
    ARP992-B: 2x 95W Li-ION battery Packs (Hot-Swappable)
  ARP992: 250W, 100~240 VAC, Auto switch
Processor

Intel Core i5-7440EQ, 2.90 GHz Processors



Intel Core i7-7820EQ, 3.0 GHz Processors
Expansion slot

3 PCI-E full-length expansion slots
  3 PCI-X full-length expansion slots
  2 PCI, 1PCI-E (x16) full-length expansion slots
Packing List
1 * ARP Slim Rugged Portable Computer 1 * MB Manual & Driver
1 * Carrying case with wheels 1 * Anti-Static Bag
1 * Power Cord 1 * Foam with Box


Applications: Military, Industrial automation, Digital TV test & analysis, Mobile Computing, Outdoor Computers, video conferencing,

                      E-learning, Speech Technologies, Telemedicine, Portable Workstation, Multimedia, Mission Critical Computing.
