         Ariesys >>  Products >> Portable Computer >> ARP970-15W

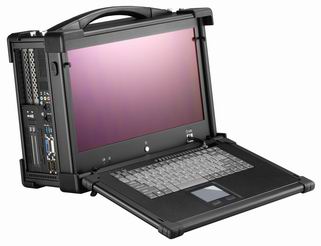

ARP970-15W       15.6", 1920x 1080 LCD. Core i5, i7 Processor

Features

  • All-in-one design rugged portable computer

  • Compact size lightweight design

  • Built-in 15.6", 1920x 1080 LCD display with anti-reflection tempered glass

  • 250W PSU or 2x 95W Li-ion battery packs, 100W adapter, up to 4 hours battery life.

  • Intel Q77 (Gen3), support Sandy bridge (Gen2) and Ivy bridge (Gen3) core i7/ i5/ i3 Processors

  • Industrial multi-languages keyboard with touchpad

  • 3PCI-E (x8) full-length expansion slots                             Option: 3PCI-X, or 2PCI, 1PCI-E (x16) slots

  • Built-in 500GB, support 2x 2.5" removable HDD

  • Dual Gigabit Ethernet, 2 COM port

  • Carrying case to manage portable PC with ease

Specifications
Model No ARP970-15W ARP970-B15W
CPU

Intel Core i5-2510E, 3M Cache, 2.50GHz Processors

(Option: Intel Core i7-2710QE, 6M Cache, 2.10 GHz)

Chipset Intel QM77 Express Chipset
Slot

3 PCI-E full-length expansion slots

Option: 3 PCI-X full-length expansion slots

Option: 2 PCI, 1 PCI-E (x16) full-length expansion slots

Display

15.6" LCD monitor with 1920x 1080 resolution

Anti-reflection tempered strengthen glass

VGA LVDS, 3rd Generation Intel Core i7 / i5 / i3 QC/DC mobile processor integrated Gfx
Memory 2x 4GB DDR3
HDD 1x 500GB 2.5", 7200 rpm SATA HDD, Support 2x 2.5" removable SATA
CDROM 1x Slim DVD-RW
Interfaces

2x DB9 for COM1, COM2, DVI-D + DVI-I connector, 2x USB 3.0 connector, 4x USB 2.0 connector

DP connector, 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio

LAN Intel® 82579LM Gigabit LAN PHY
Intel® 82583V Gigabit LAN
Audio Intel® QM77 built-in high definition audio controller with
Realtek ALC892 for 7.1 CH audio
KB/MS

Industrial multi-languages Keyboard/ touchpad

Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US

Power Supply 250W, 100~240VAC, Auto switch

2x 95W Li-ION battery packs

100W, 90~264VAC adapter

Construction Rugged Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 412x 330x 184 mm (Wx Hx D)
Weight 9 kgs
Carrying Case Padded carrying case with wheels
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS
Ordering Information
Product No. Description
ARP970-15WUSA 15.6", 1920x 1080 LCD, i5-2510E CPU, 2x 4G RAM, 3 PCI-E (x8), 500G HDD, DVD-RW, 250W PSU, and Carrying case
ARP970-15WUSB 15.6", 1920x 1080 LCD, i5-2510E CPU, 2x 4G RAM, 3 PCI-X, 500G HDD, DVD-RW, 250W PSU, and Carrying case
ARP970-15WUSC 15.6", 1920x 1080 LCD, i5-2510E CPU, 2x 4G RAM, 2PCI, PCI-E (x16), 500G HDD, DVD-RW, 250W PSU, and Carrying case
ARP970-B15WUSA 15.6", 1920x 1080 LCD, i5-2510E CPU, 2x 4G RAM, 3 PCI-E (x8), 500G HDD, DVD-RW, Battery packs, and Carrying case
ARP970-B15WUSB 15.6", 1920x 1080 LCD, i5-2510E CPU, 2x 4G RAM, 3 PCI-X, 500G HDD, DVD-RW, Battery packs, and Carrying case
ARP970-B15WUSC 15.6", 1920x 1080 LCD, i5-2510E CPU, 2x 4G RAM, 2PCI, PCI-E (x16), 500G HDD, DVD-RW, Battery packs, and Carrying case

Keyboard layout: CH, FR, GR, JP, KR, RU, UK, US

Options
Power Supply
    ARP970: 250W, 100~240 VAC, Auto switch
  ARP970-B: 2x 95W Li-ION battery Packs (Hot-Swappable)
Processor

Intel Core i5-2510E (3M Cache, 2.50 GHz) Processors



Intel Core i7-2710QE (6M Cache, 2.10 GHz) Processors
Expansion slot

3 PCI-E full-length expansion slots
  3 PCI-X full-length expansion slots
  2 PCI, 1PCI-E (x16) full-length expansion slots
Packing List
1 * ARP Slim Rugged Portable Computer 1 * MB Manual & Driver
1 * Carrying case with wheels 1 * Anti-Static Bag
1 * Power Cord 1 * Foam with Box


Applications: Military, Industrial automation, Digital TV test & analysis, Mobile Computing, Outdoor Computers, video conferencing,

                      E-learning, Speech Technologies, Telemedicine, Portable Workstation, Multimedia, Mission Critical Computing.
