         Ariesys >>  Products >> Portable Chassis >> ARP670-17W

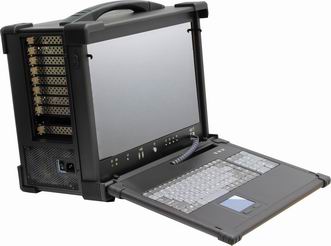

ARP670-17W                  17" (16:9) 1920x 1080 LCD Display

Features

  • Rugged Aluminum Construction with shock absorbing rubber corners

  • Built-in 17”, 1920x 1080 LCD display with anti-reflection tempered glass

  • 7-slot for ATX MB, 10-slot for SBC with Backplane

  • 104-key industrial multi-languages keyboard with touchpad

  • PS2 650W power supply, 100~240VAC

  • Offer 1x 5.25”, 1x slim DVD-RW, 2x 3.5” drive bays

  • Anti-reflection tempered glass protect LCD

  • Carrying case to manage portable PC with ease

Specifications
Model No ARP670-17W ARP670-S17W
Motherboard Support ATX M/B Support SBC with Backplane
Slots Offer 7 expansion slots Offer 10 expansion slots
Drive bay 1x 5.25”, 1x slim DVD-RW, 2x 3.5” (Option: 2x 5.25”, 1x slim DVD-RW, 1x 3.5”)
Display

17", TFT LCD Monitor, 1920x 1080 resolution

Anti-reflection tempered strengthen glass

VGA ST GM5621 AD conversion board, DVI interface (Option VGA)
KB/MS

104-key industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, IT, JP, KR, PT, RU, SP, UK, US

Power Supply PS2, 650W, 100~240VAC, Auto switch
Construction Rugged Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 434Wx 374Hx 230D mm
Weight 12 kgs
Carrying Case Padded carrying case with wheels
Environmental Factors
  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS



ARP670-S 10-slot for SBC+ PBP







Ordering Information

Product No. Description
ARP670-17WUSA

17", 1920x1080, 7 slots for ATX MB, 2B, 1S, 1slim drive bays, VGA interface, Carrying case

ARP670-17WUSB 17", 1920x1080, 7 slots for ATX MB, 1B, 2S, 1slim drive bays, VGA interface, Carrying case
ARP670-17WUSAD

17", 1920x1080, 7 slots for ATX MB, 2B, 1S, 1slim drive bays, DVI interface, Carrying case

ARP670-17WUSBD 17", 1920x1080, 7 slots for ATX MB, 1B, 2S, 1slim drive bays, DVI interface, Carrying case
ARP670-S17WUSA 17", 1920x1080, 10 slots for SBC+PBP, 2B, 1S, 1slim drive bays, VGA interface, Carrying case
ARP670-S17WUSB 17", 1920x1080, 10 slots for SBC+PBP, 1B, 2S, 1slim drive bays, VGA interface, Carrying case
ARP670-S17WUSAD 17", 1920x1080, 10 slots for SBC+PBP, 2B, 1S, 1slim drive bays, DVI interface, Carrying case
ARP670-S17WUSBD

17", 1920x1080, 10 slots for SBC+PBP, 1B, 2S, 1slim drive bays, DVI interface, Carrying case

Drive bay: B: 5.25", S: 3.5"

Keyboard layout: CH, FR, GR, KR, RU, SP, UK, US

Options
LCD

17" TFT LCD display, 1920x 1080 resolution
  17" TFT LCD display, 1280x 1024 resolution
VGA Interface

DVI Interface cable for DVI Graphic card
  D-sub 15pin VGA interface cable
Touch Screen

None
  Touch Screen
Drive Bay

1x 5.25”, 1x slim DVD-RW, 2x 3.5”
  2x 5.25”, 1x slim DVD-RW, 1x 3.5”
